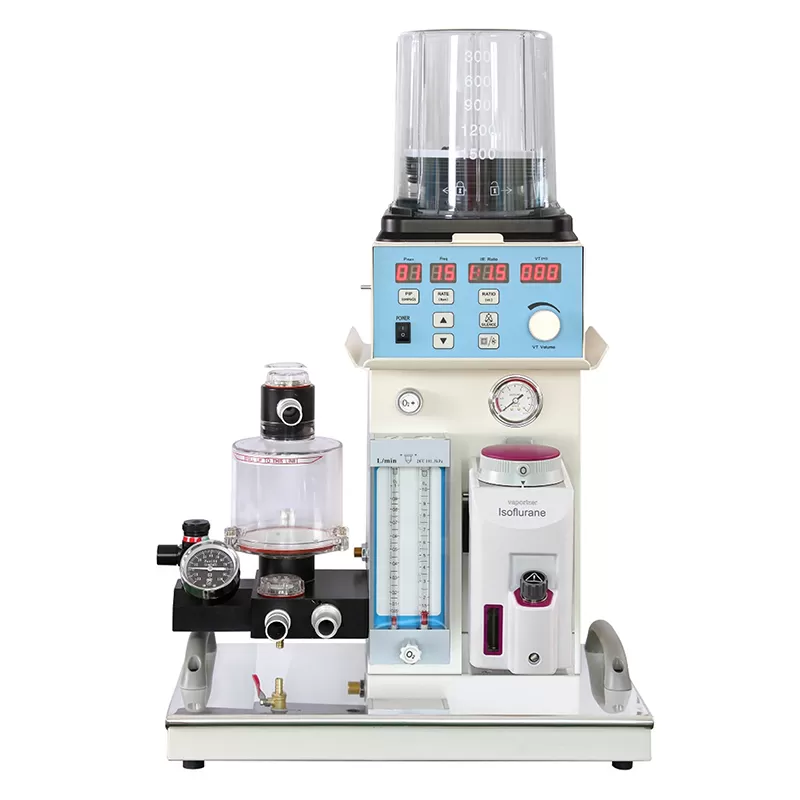

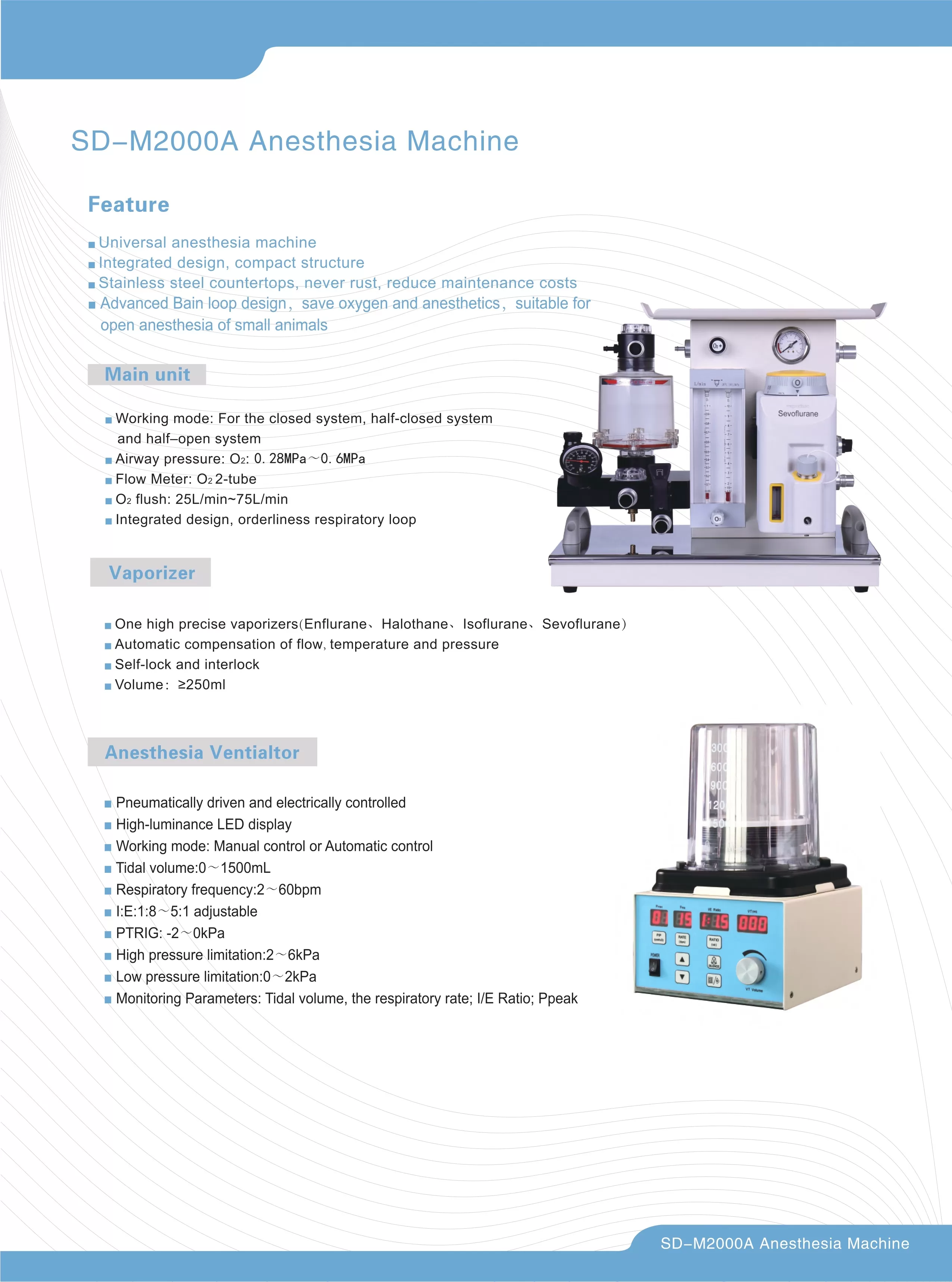

Animal Anesthesia Machine SD-M2000A Table Vet
Animal Anesthesia Machine SD-M2000A Table Vet

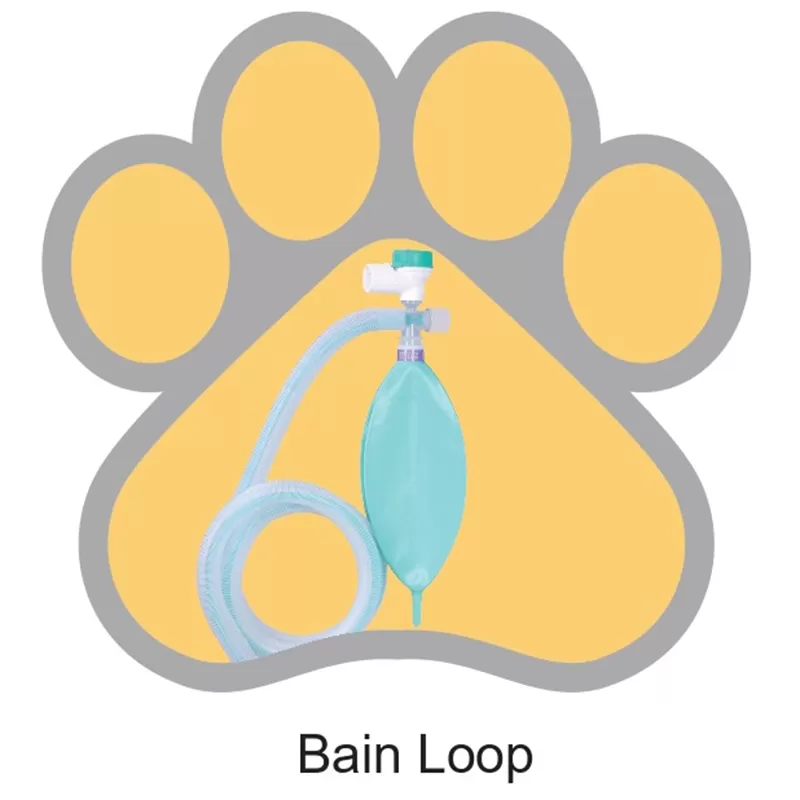

Feature Universal anesthesia machine Integrated design, compact structure Stainless steel countertops, never rust, reduce maintenance costs Advanced Bain loop design, save oxygen and anesthetics, suitable for open anesthesia of small animals. |
Main unit Working mode: For the closed system, half closed system and half open system Airway pressure: O2: 0.28 MPa ~ 0.6 MPa Flow Meter Meter: O2 two-tubes (0 ~1L/min 1~ 10L/min) O2 Flush: 25L/min ~ 75L/min CO2 absorber: Integrated design, orderliness respiratory loop
Vaporizer High precise Anesthesia Vaporizer (Halothane, Isoflurane, Sevoflurane) Sevoflurane adjustment scope: 0~8% Vol; Halothane, Isoflurane adjustment scope: 0~5%Vol Automatic compensation of flow, temperature and pressure Self-lock Volume: ≥250mL
|
Anesthesia Ventilator Pneumatically driven and electronically controlled High-luminance LED display Working mode: Manual control or Automatic control (IPPV Mode) Tidal Volume: 0 ~ 1500mL Respiratory frequency: 2~60bpm I:E : 1:8~5:1 adjustable PTRIG: -2 ~ 0kPa High pressure limitation: 2~6kPa Low pressure limitation: 0~2kPa Monitoring Parameters: Tidal Volume, Respiratory Rate, I: E Ratio, Ppeak. |
