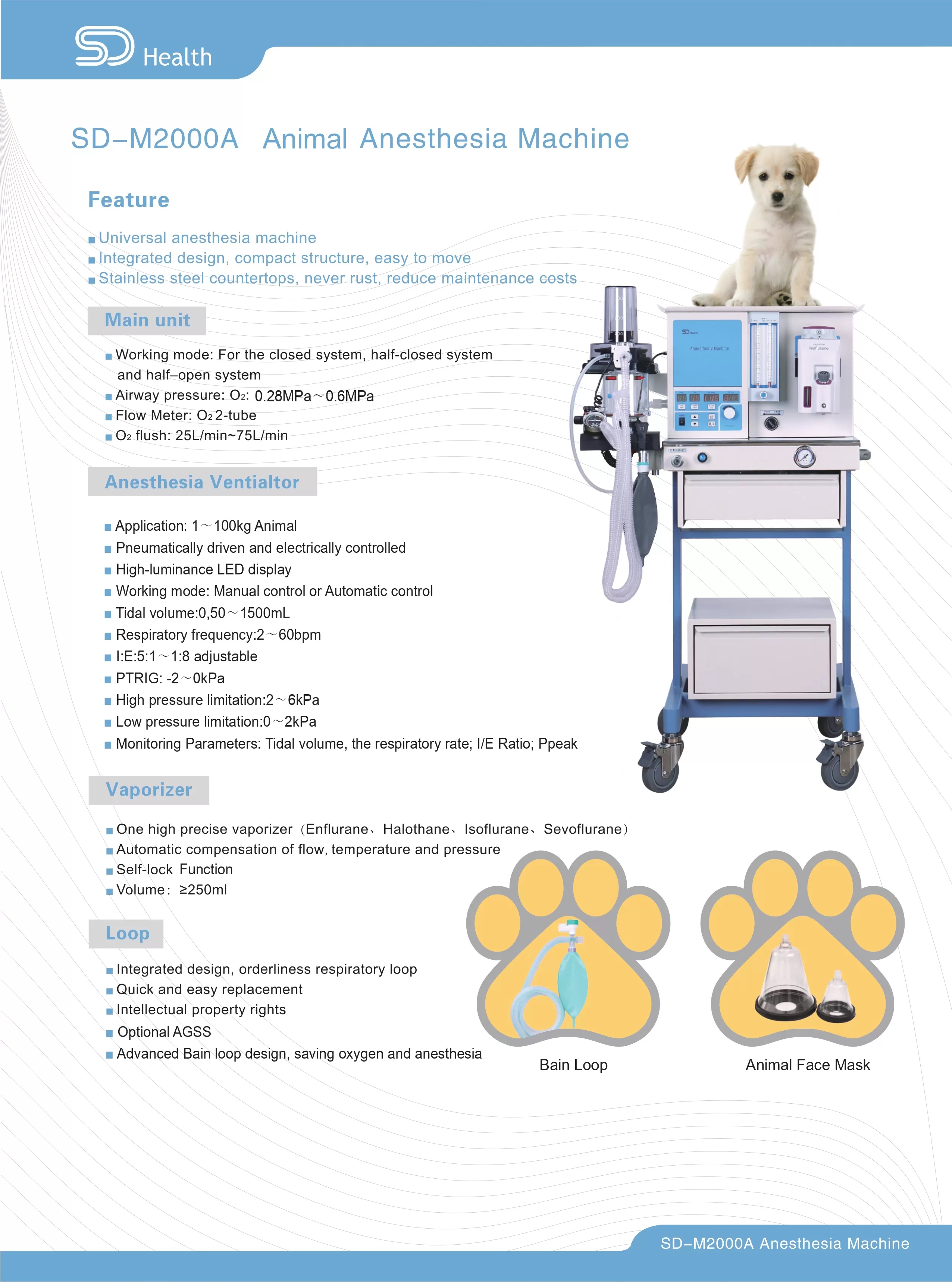

Animal Anesthesia Machine SD-M2000A Vet
Anesthesia Machine SD-M2000A Vet
Feature Universal anesthesia machine Integrated design, compact structure, easy to move Stainless steel countertops, reduce maintenance costs Standard Bain Loop and Dedicated Pet Anesthesia Mask |
Main unit Working mode: For the closed system, half closed system and half open system Airway pressure: O2: 0.28MPa ~ 0.6MPa Flow Meter: O2 2 tubes O2 Flush: 25L/min ~ 75L/min |
Anesthesia Ventilator Application: 1~ 100 kg Animal Pneumatically driven and electronically controlled, high-luminance LED display Working mode: Manual control or Automatic control (IPPV) Tidal Volume: 0, 50 ~ 1500mL Respiratory frequency: 2~60bpm I:E : 5:1~1:8 adjustable PTRIG: -2 ~ 0kPa High pressure limitation: 2~6kPa Low pressure limitation: 0~2kPa Monitoring Parameters: Tidal volume, Respiratory rate, I:E Ratio, Ppeak
|
Vaporizer High precise Anesthesia Vaporizer (Halothane, Isoflurane, Sevoflurane) Sevoflurane adjustment scope: 0~8% Vol; Halothane, Isoflurane adjustment scope: 0~5%Vol Automatic compensation of flow, temperature and pressure Self-lock Volume: ≥250mL
|
Loop ( CO2 absorber) Integrated CO2 Absorber, orderliness respiratory loop Classical style Quickly and easily replace soda lime Advanced Bain loop design, saving Oxygen and Anesthesia agent. |
